IFAN Serpentine vs Spiral PEX Pipe Layout for Floor Heating

Introduction

When it comes to installing a floor heating system, the layout of the PEX pipes is a big deal. It can make or break the efficiency and comfort of your heating. IFAN, a well – known brand in the plumbing and heating industry, offers top – notch PEX pipes for floor heating. Let’s dive into the differences between serpentine and spiral layouts and see which one might be the best fit for your home.

Serpentine PEX Pipe Layout

What It Looks Like

Imagine a snake slithering across the floor. That’s basically what the serpentine layout of IFAN PEX pipes is like. The pipes run back and forth in a continuous pattern, covering the entire floor area. It’s a pretty straightforward and common way to lay out the pipes.

Advantages

1. Even Heat Distribution: One of the biggest perks of the serpentine layout is that it ensures even heat distribution. Since the pipes are laid out in a long, continuous path, heat spreads uniformly across the floor. You won’t have to deal with cold spots in your room. For example, in a bedroom, you can step out of bed onto a warm floor everywhere, not just in some areas.
2. Easy Installation: If you’re a DIY enthusiast or just new to floor heating installations, the serpentine layout is a great choice. It’s relatively simple to understand and execute. You don’t need a lot of complex tools or techniques. Just start from one end of the room and keep laying the IFAN PEX pipes back and forth until you cover the whole area.
3. Cost – Effective: This layout is also cost – effective. It uses the pipes efficiently, minimizing waste. You won’t end up with a bunch of leftover pipe that you have no use for. Also, because it’s a common layout, many plumbers are familiar with it, which can save you on installation costs if you decide to hire a professional.

Spiral PEX Pipe Layout

What It Looks Like

The spiral layout is like a big coil or a spring laid out on the floor. The IFAN PEX pipes start from a central point and spiral outwards in a circular pattern. It gives a more unique and visually appealing look compared to the serpentine layout.

Advantages

1. Faster Heating: With the spiral layout, the heat can reach different parts of the room more quickly. Since the pipes are arranged in a circular pattern, the water can circulate more efficiently, transferring heat faster. This is especially useful in larger rooms where you want to feel the warmth as soon as possible.
2. Flexibility in Design: If you have a room with an irregular shape or you want to add a bit of design flair to your floor heating system, the spiral layout is perfect. You can adjust the size and shape of the spiral according to the room’s dimensions and your personal preferences. It allows for more creativity in the installation process.
3. Reduced Pressure Drop: The smooth, continuous curve of the spiral layout helps in reducing the pressure drop within the pipe system. This means that the water can flow more freely through the IFAN PEX pipes, improving the overall performance of the floor heating system. It also puts less strain on the pump, potentially extending its lifespan.

Recommended IFAN Product

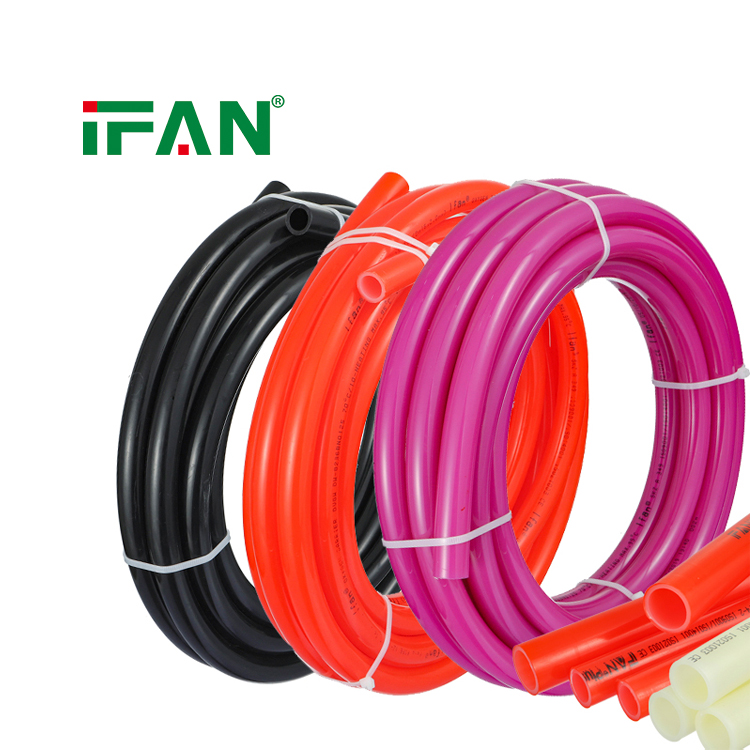

When it comes to IFAN PEX pipes for floor heating, the IFAN High – Quality 16mm PEX – B Pipe is an excellent option. It’s made from high – grade materials that are durable and resistant to corrosion. The 16mm diameter is a great balance between flexibility and water flow capacity. It comes in various lengths, so you can choose the one that best suits your project. Plus, IFAN is known for its strict quality control, ensuring that you get a reliable and long – lasting product.

Conclusion

Both the serpentine and spiral layouts of IFAN PEX pipes have their own set of advantages. The serpentine layout is great for even heat distribution, easy installation, and cost – effectiveness. On the other hand, the spiral layout offers faster heating, design flexibility, and reduced pressure drop. Consider the size and shape of your room, your budget, and your personal preferences when choosing between the two. And with IFAN’s high – quality PEX pipes, you can be confident that your floor heating system will keep you warm and comfortable for years to come.
