PEX (cross-linked polyethylene) tubing has revolutionized the plumbing world, offering flexibility, freeze resistance, and corrosion immunity. However, the benefits of PEX can only be fully realized with a reliable connection method. Choosing the right fitting system is critical for the longevity and integrity of your plumbing. This article provides a comprehensive rundown of the major PEX-connection fitting systems, with a special focus on the game-changing technology of pipe press fittings.
The Three Major PEX Connection Systems
There are three primary methods for connecting PEX tubing: crimp, expansion, and press. Each has its own advantages, disadvantages, and ideal use cases.
1. Crimp Fitting Systems
The crimp method was one of the first and remains one of the most common PEX connection systems.
- How it Works: A brass or poly alloy fitting is inserted into the PEX tube. A copper or stainless-steel ring is slid over the tube. A specialized crimping tool is then used to compress the ring onto the tube and fitting, creating a secure mechanical connection.
- Pros:
- Low Cost: Crimp tools and fittings are generally the least expensive upfront investment.
- Widespread Availability: Rings and fittings are readily available at most hardware stores.
- Cons:
- Requires Verification: You must use a go/no-go gauge to check every single crimp to ensure it’s neither under- nor over-crimped.
- Tool Can Be Cumbersome: The manual crimping tool can be difficult to use in very tight spaces.
2. Expansion Fitting Systems (PEX-A)
This system is most commonly associated with PEX-A tubing, which has a unique “shape memory.”
- How it Works: An expansion tool with a conical head is used to stretch the diameter of the PEX tube. A specially designed fitting is then inserted into the expanded tube. The PEX tube naturally wants to return to its original size, creating a powerful, 360-degree compressive grip on the fitting.
- Pros:
- Excellent Flow: The fittings have a larger internal diameter, resulting in less flow restriction.
- Strong Connection: The cold-shrink action creates a very reliable, mechanical joint.
- Cons:
- Waiting Period: You must allow the joint to fully contract before pressurizing the system, which takes a few minutes.
- Higher Cost: The expansion tool is a significant investment, and PEX-A tubing is typically more expensive than PEX-B or C.

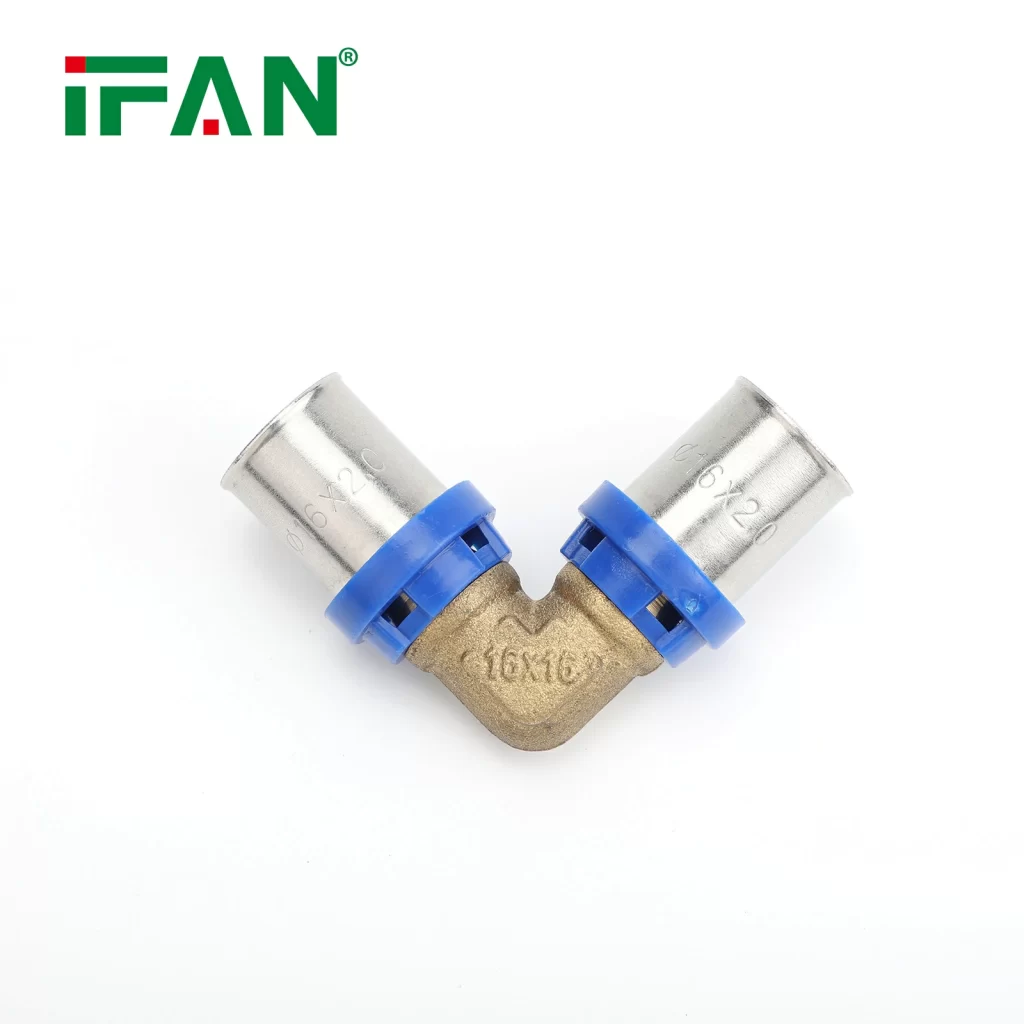

3. Press Fitting Systems: The Modern Professional Standard
Pipe press fittings represent the latest evolution in connection technology, combining the best aspects of other systems with unparalleled speed.
- How it Works: You use a PEX tube cutter to create a clean, square cut and deburr the end. A proprietary press fitting—which contains a built-in sealing O-ring—is slid onto the tube until it bottoms out. A battery-powered press tool with specific jaws is placed over the fitting and activated. It applies uniform, immense pressure to crimp a stainless-steel sleeve onto the tube, creating a permanent, leak-proof seal in seconds.
- Pros:
- Incredible Speed: The pressing process takes just 3-5 seconds per connection, drastically reducing labor time.
- No Heat, No Flame: It’s a cold-work process, eliminating fire hazards and making it safe to use in tight, dry, or sensitive spaces.
- Verified Connection: Many modern press tools have built-in diagnostics (like a green light) to confirm a successful press, removing human error.
- Wet System Capable: Connections can be made on damp or even actively dripping pipes, unlike soldering.
- Cons:
- Highest Upfront Cost: The press tool itself is a major investment, though it pays for itself quickly for professionals through labor savings.
- Proprietary System: Fittings and tools are often brand-specific (e.g., Viega, Uponor ProPEX Press); you must use the correct brand of fitting with the corresponding tool.
Choosing the Right System For You
- DIY Homeowner (Small Projects): A manual crimp system is the most cost-effective choice for small repairs or single-fixture installs.
- Serious DIYer / Custom Home Builder: An expansion system offers excellent performance and is a great long-term investment for those who use PEX frequently.
- Professional Plumber / High-Volume Installer: The pipe press fittings system is the undisputed winner. The time savings, reliability, and safety justify the initial tool cost many times over.
Conclusion
The world of PEX connections offers a solution for every need and budget. While crimp and expansion systems have their place, the efficiency and foolproof reliability of pipe press fittings are setting a new standard for professional plumbing. By understanding the differences between these systems, you can make an informed decision that ensures your plumbing project is built for performance and longevity.
Frequently Asked Questions (FAQ)
1. Can I mix and match different brands of PEX fittings and tools?
No, this is strongly discouraged. Especially with press systems, the tools and fittings are precisely engineered to work together as a single system. Using a Viega fitting with an Uponor tool, for example, will not work and will void any manufacturer warranties. Always use the fittings designed for your specific connection method and brand.
2. Are press fittings reusable?
No. The press connection is a permanent, single-use installation. If you make a mistake or need to change the layout, you must cut out the pressed fitting and replace it with a new one. This is why careful planning is essential before pressing.
3. Which PEX type (A, B, or C) is best for press systems?
Press systems are versatile and are typically compatible with all types of PEX tubing (A, B, and C) that meet certain dimensional standards. However, you must always check the manufacturer’s compatibility chart for their specific press fittings to ensure you are using an approved tube.
4. Do I still need to use a go/no-go gauge with press fittings?
While the press tool itself provides a visual or audible confirmation of a good press, many professionals still use a go/no-go gauge as a final quality control check. It provides physical confirmation that the sleeve was compressed to the exact required specification.
5. What is the main advantage of press over expansion?
The primary advantage is speed and the ability to pressurize immediately. An expansion connection requires a recovery time before the system can be pressurized. A press connection is ready for water immediately after the press is complete, with no waiting.
