In modern plumbing, PEX (cross-linked polyethylene) is one of the most popular materials for water distribution systems due to its durability, flexibility, and ease of installation. When installing PEX piping, one of the key components that ensure a successful plumbing system is the type of fitting used. While PEX press fittings are one of the most common connection methods, there are other viable options for making reliable connections, such as crimp fittings and stainless-steel clamps. Understanding how to connect PEX press fittings with crimp fittings and stainless-steel clamps can make all the difference in terms of leak prevention, ease of installation, and overall system reliability.
This article will explore how PEX press fittings interact with crimp fittings and stainless-steel clamps, the advantages of each method, and how they work together for a robust and secure plumbing system.
What Are PEX Press Fittings?
PEX press fittings are specially designed fittings that are used to connect PEX pipes to each other or to different types of plumbing materials such as copper, PVC, or CPVC. The primary method for connecting PEX press fittings involves the use of a press tool to compress the fitting and pipe, creating a tight, leak-proof seal. Unlike traditional methods like crimping, press fittings require less effort, no heat, and less time to complete.

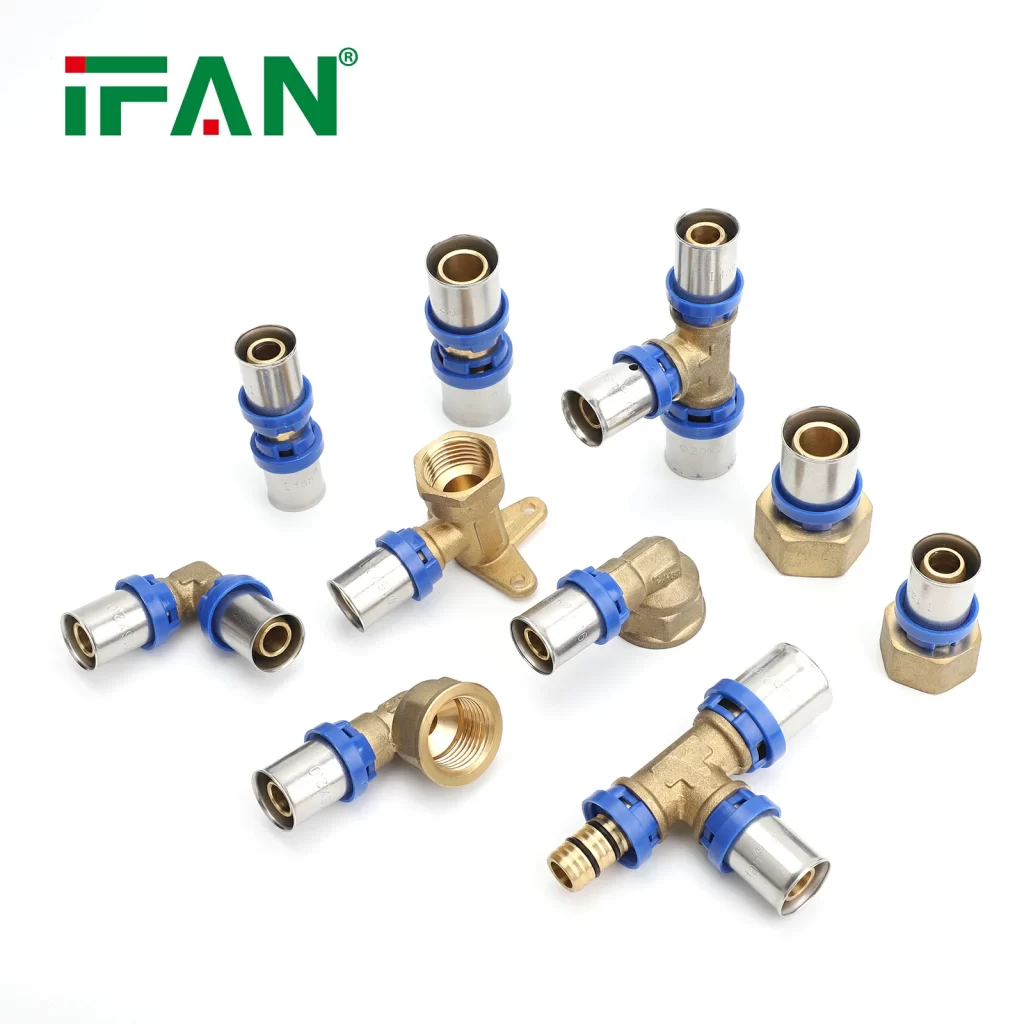

There are several types of PEX press fittings, including:
- Elbows – For changing direction in a PEX pipe.
- Tees – To create a branching point in the system.
- Couplings – For joining two pieces of PEX together.
- Adapters – For connecting PEX to other materials like copper or PVC.
These fittings are often made of brass, stainless steel, or plastic, and they are available in a variety of sizes and configurations to accommodate different plumbing needs.
What Are Crimp Fittings?
Crimp fittings are another type of connection system for PEX piping. The process involves using a metal crimp ring (usually copper) that is placed over the PEX pipe and fitting. A crimping tool is then used to tighten the ring, which compresses the pipe against the fitting, creating a tight, secure connection.
Crimp fittings are widely used in residential plumbing systems due to their affordability, ease of use, and strong, reliable connections. The crimping process, when done correctly, can ensure a durable, long-lasting joint that prevents leaks under high-pressure conditions.
What Are Stainless-Steel Clamps?
Stainless-steel clamps are used in a similar way to crimp fittings but differ in the material and the method of securing the connection. Stainless-steel clamps are often used with PEX pipes and fittings in systems that require a more robust, high-strength connection. The clamp is placed over the PEX pipe and fitting, and a clamp tool is used to tighten the stainless-steel band, compressing the pipe against the fitting.
Stainless-steel clamps offer several advantages, including their resistance to corrosion and their ability to handle high-pressure systems. They are often used in systems that involve heating, cooling, or systems in which there may be temperature fluctuations. Additionally, stainless-steel clamps are relatively easy to use and provide a secure, long-lasting connection.
How to Connect PEX Press Fittings with Crimp Fittings and Stainless-Steel Clamps
While PEX press fittings, crimp fittings, and stainless-steel clamps are separate connection methods, there are situations where they can be used together effectively in a plumbing system. Let’s go over how these methods work when combined:
1. Connecting PEX Press Fittings with Crimp Fittings
In most plumbing systems, PEX press fittings and crimp fittings do not directly connect, as they are designed to be used with different installation techniques. However, in certain cases, they can work together in hybrid systems. For example, you might use PEX press fittings to connect to a fixture or another section of the plumbing system and then use crimp fittings for sections where a more traditional connection method is preferred.
Process:
- First, measure and cut the PEX pipe to the desired length, ensuring the cut is straight.
- Next, insert the PEX press fitting into one end of the pipe.
- Using a PEX press tool, apply pressure to compress the fitting and pipe together to form a tight connection.
- For sections where crimp fittings are necessary, slide a copper crimp ring over the PEX pipe and insert the crimp fitting into the pipe.
- Use a crimping tool to compress the copper crimp ring, ensuring the pipe and fitting are securely connected.
- Check the connections carefully to make sure there are no leaks.
In this hybrid setup, the PEX press fittings provide quick, secure connections, while the crimp fittings serve as a reliable and affordable solution for simpler connections.
2. Connecting PEX Press Fittings with Stainless-Steel Clamps
PEX press fittings can also be used alongside stainless-steel clamps in situations where extra durability or resistance to corrosion is needed. In this setup, the PEX press fitting is used to connect the pipe to the fitting, while the stainless-steel clamp provides additional support to ensure that the pipe and fitting are firmly connected.
Process:
- Begin by cutting the PEX pipe to size.
- Insert the PEX press fitting into the pipe and use the PEX press tool to create a secure, tight connection.
- For additional reinforcement, place a stainless-steel clamp over the fitting and pipe connection.
- Use the clamp tool to tighten the stainless-steel clamp, ensuring that the connection is secure.
- Check the fitting for leaks and ensure that it has been properly tightened.
This method is particularly useful in systems where there are fluctuating temperatures or high-pressure conditions, as the stainless-steel clamp provides extra strength and security.
Advantages of Connecting PEX Press Fittings with Crimp Fittings and Stainless-Steel Clamps
There are several key benefits to combining PEX press fittings with crimp fittings and stainless-steel clamps in your plumbing system.
1. Enhanced Flexibility
By combining different types of fittings, you can adapt the plumbing system to your specific needs. PEX press fittings offer quick and easy installation, while crimp fittings and stainless-steel clamps can be used in areas where additional strength or cost-effectiveness is needed. This flexibility is essential for both residential and commercial plumbing systems.
2. Increased Durability
PEX press fittings provide a secure connection, and adding stainless-steel clamps to the mix provides additional strength, especially in high-pressure or high-temperature applications. The stainless-steel clamps resist corrosion and provide extra security to ensure the system is leak-free for years to come.
3. Cost-Effective Installation
Combining PEX press fittings with crimp fittings and stainless-steel clamps can save money. PEX press fittings can be a bit more expensive initially, but their ease of installation saves time and labor costs. Crimp fittings and stainless-steel clamps are generally affordable and can be used where appropriate to reduce material costs without sacrificing reliability.
4. Reduced Installation Time
Using PEX press fittings reduces the amount of time it takes to make connections, as it does not require soldering or crimping in the traditional sense. For areas where crimping or clamping is necessary, the process is also quick and easy, reducing the overall installation time.
5. Leak-Free Connections
All three connection methods—PEX press fittings, crimp fittings, and stainless-steel clamps—are designed to create secure, leak-free connections. When installed properly, they ensure that your plumbing system remains safe and efficient over time.
Common Applications of Combining PEX Press Fittings, Crimp Fittings, and Stainless-Steel Clamps
This hybrid connection method is particularly useful in the following applications:
- Residential Plumbing: In residential systems, PEX press fittings can be used for mainline connections, while crimp fittings or stainless-steel clamps are ideal for branching out or connecting to fixtures like faucets, dishwashers, and water heaters.
- Commercial Plumbing: Larger systems in commercial settings can benefit from the versatility of PEX press fittings paired with stainless-steel clamps for increased strength and reliability.
- Radiant Heating Systems: PEX press fittings combined with crimp fittings or stainless-steel clamps are frequently used in radiant floor heating systems, where durability and resistance to pressure and temperature fluctuations are crucial.
Conclusion
Combining PEX press fittings, crimp fittings, and stainless-steel clamps offers a flexible, cost-effective, and reliable solution for plumbing installations. While PEX press fittings provide speed and ease of use, crimp fittings and stainless-steel clamps offer durability and cost-effectiveness in areas where additional reinforcement is needed. By understanding how these different methods work together, you can create a plumbing system that is secure, long-lasting, and efficient.
Whether you’re a professional plumber or a DIY enthusiast, knowing when and how to use these methods will allow you to achieve superior results in your plumbing projects.
Frequently Asked Questions (FAQs)
1. Can I use PEX press fittings with crimp fittings?
Yes, it’s possible to use PEX press fittings in combination with crimp fittings
in certain sections of a plumbing system. They can work together, especially when different sections require different installation methods.
2. What is the advantage of using stainless-steel clamps over crimp rings?
Stainless-steel clamps provide additional durability, resistance to corrosion, and a stronger connection, especially in high-pressure or high-temperature applications. They are also easier to install and more forgiving than copper crimp rings.
3. How do I ensure a leak-free connection with crimp fittings?
Make sure to use the proper size crimp rings and fittings, and always use a calibrated crimping tool to ensure that the crimp is tight and secure. Checking the connection for leaks after installation is also essential.
4. Are PEX press fittings compatible with all types of PEX pipes?
Yes, PEX press fittings are generally compatible with most types of PEX pipes, including PEX-A, PEX-B, and PEX-C. Be sure to select the correct fittings for the specific type of pipe you’re using.
5. How do I know if I’ve applied enough pressure when using PEX press fittings?
Most PEX press tools have an indicator that shows when the proper pressure has been applied. The tool will alert you when the fitting is fully compressed and secure. Always double-check to ensure there is no visible gap between the pipe and the fitting.
