Introduction
In recent years, PEX (cross-linked polyethylene) plumbing systems have become the go-to choice for both residential and commercial applications. Known for their flexibility, durability, and ease of installation, PEX pipes have revolutionized the plumbing industry. A critical component in the installation of PEX systems is the use of PEX press fittings. These fittings, when paired with the right tools, ensure secure, leak-free connections that are crucial for the integrity of the plumbing system.
This comprehensive guide will explore the process of connecting PEX plumbing using press fittings, highlighting their advantages, the tools required, and step-by-step instructions for ensuring a reliable installation. Whether you’re a seasoned plumber or a DIY enthusiast, understanding PEX press fittings is key to a successful plumbing project.
What Are PEX Press Fittings?
PEX press fittings are specialized components used to connect PEX tubing in a plumbing system. Unlike traditional methods, such as crimping or soldering, PEX press fittings utilize a mechanical pressing action to create a strong, permanent connection. The press fittings are made of materials like brass or copper, and the process involves using a press tool to compress the fitting onto the PEX pipe, forming a tight, secure bond.
The benefits of using PEX press fittings over traditional methods are numerous:
- Speed: Pressing fittings is quicker than crimping or soldering, making it an ideal solution for time-sensitive projects.
- Leak-proof: When pressed properly, the connections are highly reliable, reducing the chances of leaks over time.
- No Heat Required: Unlike soldering, PEX press fittings do not require heat, which eliminates the risk of fire hazards and burns.
- Ease of Use: With the right tools, pressing fittings is a simple and straightforward process, even for those with limited experience.
Why Choose PEX Press Fittings for Connecting PEX Plumbing?
1. Speed and Efficiency
One of the key advantages of using PEX press fittings is the speed of installation. Traditional methods, like crimping or soldering, often require more time, tools, and steps. With press fittings, the process is simplified—placing the fitting, using the tool to press it, and moving on to the next connection.
This speed makes PEX press fittings a favorite for both professional plumbers and DIY enthusiasts. Whether you’re working on a small home project or a large commercial installation, PEX press fittings streamline the process, saving you valuable time.
2. Reliability and Leak Resistance
PEX press fittings are designed to provide a secure, leak-proof connection when installed correctly. The pressing action creates a tight, uniform seal that is resistant to leaks, unlike some crimped connections which may become loose over time. The fittings are also less prone to issues like corrosion, which is common with traditional metal pipes.
Leak-free connections are critical in any plumbing system, and PEX press fittings provide peace of mind by ensuring long-lasting, durable joints.
3. Flexibility and Versatility
PEX pipes themselves are known for their flexibility, and this trait extends to the press fittings as well. PEX press fittings are compatible with a wide variety of pipe sizes and configurations, making them suitable for different plumbing systems, whether in residential or commercial settings.
Additionally, PEX press fittings can be used with various materials, such as copper, stainless steel, and brass, providing a versatile solution that meets the needs of diverse plumbing projects.
4. No Need for Heat
One of the significant challenges with traditional methods like soldering is the need for heat. Soldering requires a flame or a heat source to join pipes, which can be hazardous, especially in tight spaces. In contrast, PEX press fittings require no heat, making them a safer option. This also means there’s no need to wait for pipes to cool before handling or installing them.
Tools Needed for Connecting PEX Plumbing with Press Fittings
To connect PEX plumbing using press fittings, you’ll need a few essential tools:
1. PEX Press Tool
A PEX press tool is the most critical tool for installing PEX press fittings. This tool is used to apply the necessary force to compress the fitting onto the PEX pipe, ensuring a leak-proof seal. Milwaukee, RIDGID, and other reputable brands offer high-quality press tools, which come with adjustable crimp jaws for different pipe sizes.
The press tool is typically powered either by hydraulics (for professional-grade tools) or battery (for cordless, more portable options), providing consistent and reliable pressure.

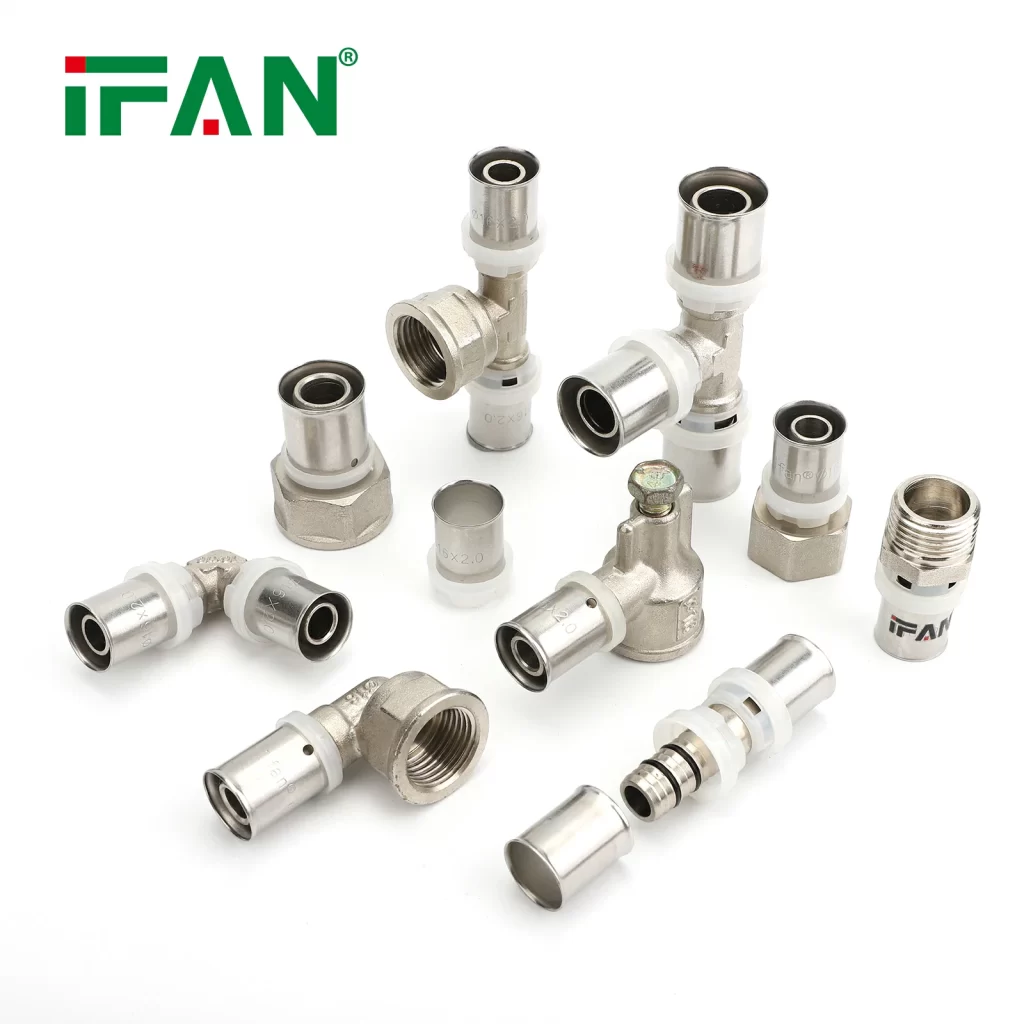

2. PEX Press Fittings
PEX press fittings come in various types and sizes, depending on the specific needs of your plumbing system. The fittings typically include elbow joints, tees, couplings, and adapters. You’ll need to choose the right fittings for your application, ensuring that they are compatible with your PEX pipes.
3. PEX Tubing
While the press fittings are essential, PEX tubing is just as crucial. Available in various diameters, PEX tubing is flexible and easy to install. It can be used for water supply lines, radiant heating systems, and even fire sprinkler systems.
4. Pipe Cutter
To ensure a clean, straight cut when working with PEX tubing, you’ll need a pipe cutter. A specialized PEX pipe cutter or a sharp utility knife will help achieve a precise cut, which is important for a secure fit with the press fittings.
Step-by-Step Guide to Connecting PEX Plumbing with Press Fittings
Step 1: Measure and Cut the PEX Pipe
Start by measuring the length of PEX tubing you need. Once measured, use a pipe cutter to make a clean, straight cut. Ensure the cut is square to avoid any gaps between the tubing and the press fitting.
Step 2: Prepare the Fitting and Pipe
Before inserting the PEX pipe into the press fitting, you need to ensure both the pipe and the fitting are clean and free of debris. Any dirt or moisture can interfere with the press process and lead to an insecure connection.
Insert the end of the PEX pipe into the fitting, making sure the pipe is fully inserted. You should be able to see the pipe edge inside the fitting to confirm proper insertion.
Step 3: Position the Press Tool
Next, position the press tool around the fitting and the PEX pipe. Ensure that the crimp jaws of the press tool are aligned with the fitting. Double-check the tool’s settings to ensure it’s suitable for the size of the fitting you’re using.
Step 4: Activate the Press Tool
Once everything is properly positioned, activate the press tool. The tool will apply hydraulic or mechanical force to compress the fitting onto the PEX pipe. This compression creates a secure, leak-proof connection. Hold the press tool in place until it completes the pressing cycle, which may take just a few seconds.
Step 5: Check the Connection
After pressing the fitting, visually inspect the connection. There should be no gaps or loose areas. Some advanced press tools come with an indicator that shows whether the connection was successful, while others may include an audible or visual cue when the press is complete.
Step 6: Repeat the Process
Continue the process for each connection in your plumbing system. For larger systems, you may need to make multiple connections, but the ease and speed of PEX press fittings will ensure that the job progresses smoothly.
Troubleshooting Common Issues with PEX Press Fittings
While PEX press fittings are generally reliable, it’s important to address potential issues that may arise:
- Leakage: If you notice any leaks, inspect the connection for issues such as incomplete pressing or contamination on the pipe or fitting. Re-pressing or cleaning the components may resolve the issue.
- Incorrect Tool Settings: Ensure that your press tool is correctly adjusted for the size and type of fittings you’re using. Incorrect settings can lead to poorly sealed connections.
- Misaligned Fittings: Double-check that the fitting is properly aligned with the pipe before pressing. Misalignment can result in leaks or poor connections.
Frequently Asked Questions (FAQs)
1. What is the difference between PEX press fittings and PEX crimp fittings?
PEX press fittings use a press tool to create a secure, leak-proof connection, while PEX crimp fittings rely on crimp rings and a crimping tool to secure the connection. Press fittings are generally faster and easier to install and offer greater reliability.
2. Can I use PEX press fittings for both hot and cold water lines?
Yes, PEX press fittings are suitable for both hot and cold water systems. PEX tubing itself is designed to handle temperature variations, making it ideal for use in a wide range of plumbing applications.
3. How long do PEX press fittings last?
When installed properly, PEX press fittings can last for decades. PEX plumbing systems are highly durable and resistant to corrosion, ensuring that your connections remain secure for the long term.
4. Do I need to use a special tool to install PEX press fittings?
Yes, PEX press fittings require a specialized press tool to create a secure connection. These tools apply the necessary force to compress the fitting onto the PEX pipe.
5. Are PEX press fittings compatible with all types of PEX tubing?
PEX press fittings are compatible with most types of PEX tubing, including PEX-A, PEX-B, and PEX-C. However, always ensure that the fittings and tubing are compatible with each other before beginning installation.
Conclusion
Connecting PEX plumbing with press fittings is an efficient, reliable, and safe method for creating leak-free connections. By understanding the process, using the right tools, and following the correct procedures, you can achieve a secure and durable plumbing system. Whether you’re a professional plumber or a
